2G·3G·4G·5G Network Architecture Diagrams



2G Architecture



2G or second-generation wireless technology was introduced in the 1990s. It uses a circuit-switched network architecture that divides the radio spectrum into several channels. The 2G network architecture comprises three main components:

• Mobile Station (MS): This includes the mobile phone and the SIM card.

• Base Station Subsystem (BSS): This includes the Base Transceiver Station (BTS) that communicates with the mobile phone and the Base Station Controller (BSC) that manages the allocation of radio channels.

• Network Switching Subsystem (NSS): This includes the Mobile Switching Center (MSC) that manages the switching of calls between different networks, and the Home Location Register (HLR) that stores user data.



3G Architecture



3G or third-generation wireless technology was introduced in the early 2000s. It uses a packet-switched network architecture that enables faster data transfer rates and supports multimedia applications. The 3G network architecture comprises four main components:

• User Equipment (UE): This includes the mobile phone or any other device that accesses the internet.
• Radio Access Network (RAN): This includes the Node B that communicates with the UE and the Radio Network Controller (RNC) that manages the allocation of radio resources.

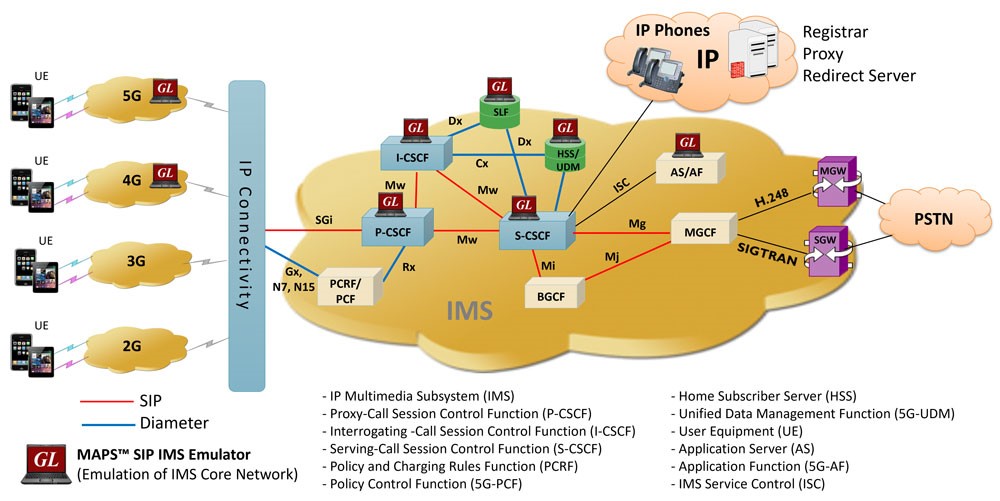

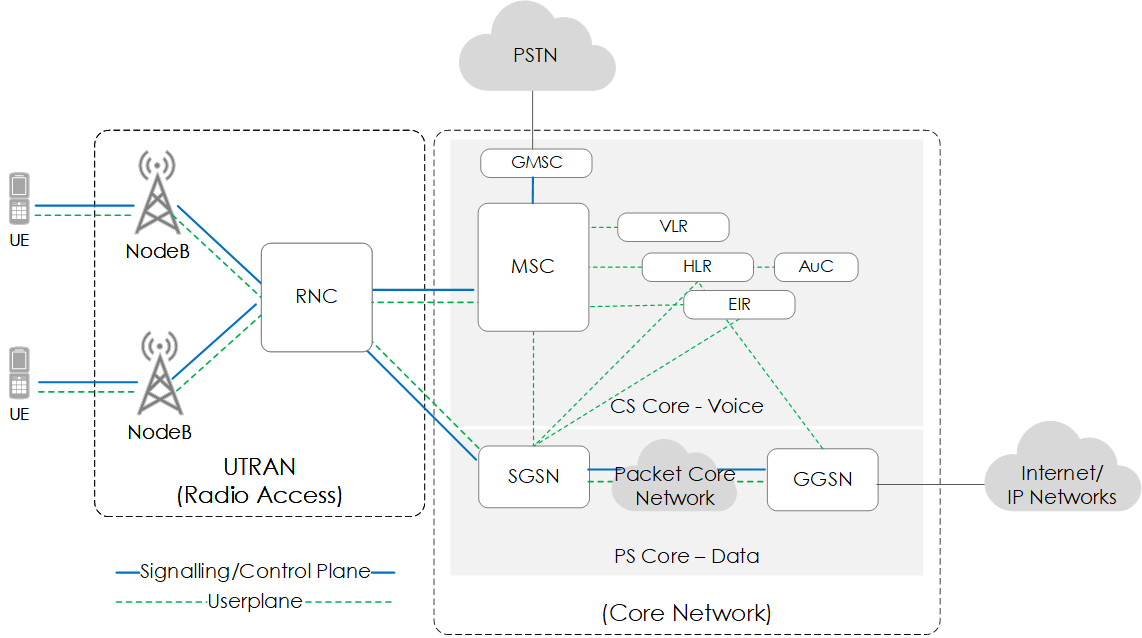

• Core Network (CN): This includes the Serving GPRS Support Node (SGSN) that manages the routing of data packets and the Gateway GPRS Support Node (GGSN) that acts as the interface between the mobile network and the internet.



4G Architecture



4G or fourth-generation wireless technology was introduced in the late 2000s. It uses an all-IP (Internet Protocol) network architecture that enables faster data transfer rates and supports high-bandwidth applications such as video streaming and online gaming. The 4G network architecture comprises four main components:

• User Equipment (UE): This includes the mobile phone or any other device that accesses the internet.

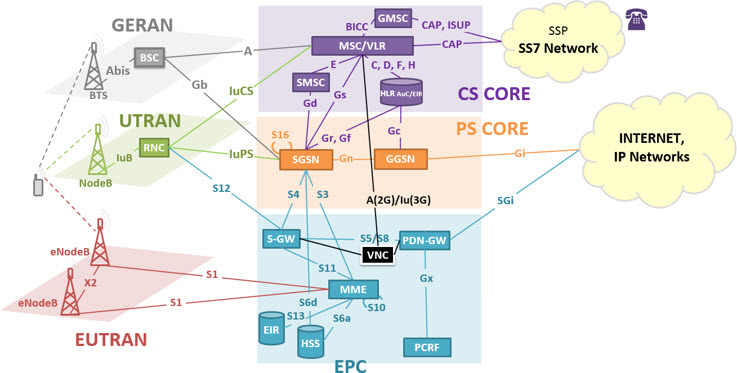

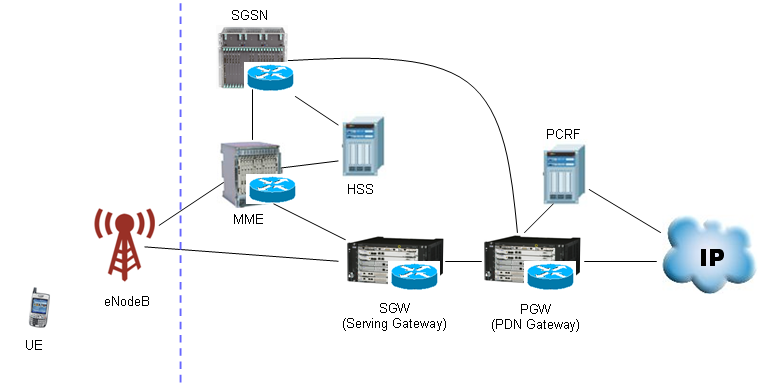

• Evolved Packet Core (EPC): This includes the Serving Gateway (SGW) that manages the data flow between the UE and the network, the Packet Data Network Gateway (PDN GW) that provides access to the internet, and the Mobility Management Entity (MME) that handles signaling between the UE and the network.

• Radio Access Network (RAN): This includes the eNodeB that communicates with the UE and the Evolved Node B Gateway (eNB GW) that manages the allocation of radio resources.
• Home Subscriber Server (HSS): This stores the subscriber data and provides authentication and authorization services.

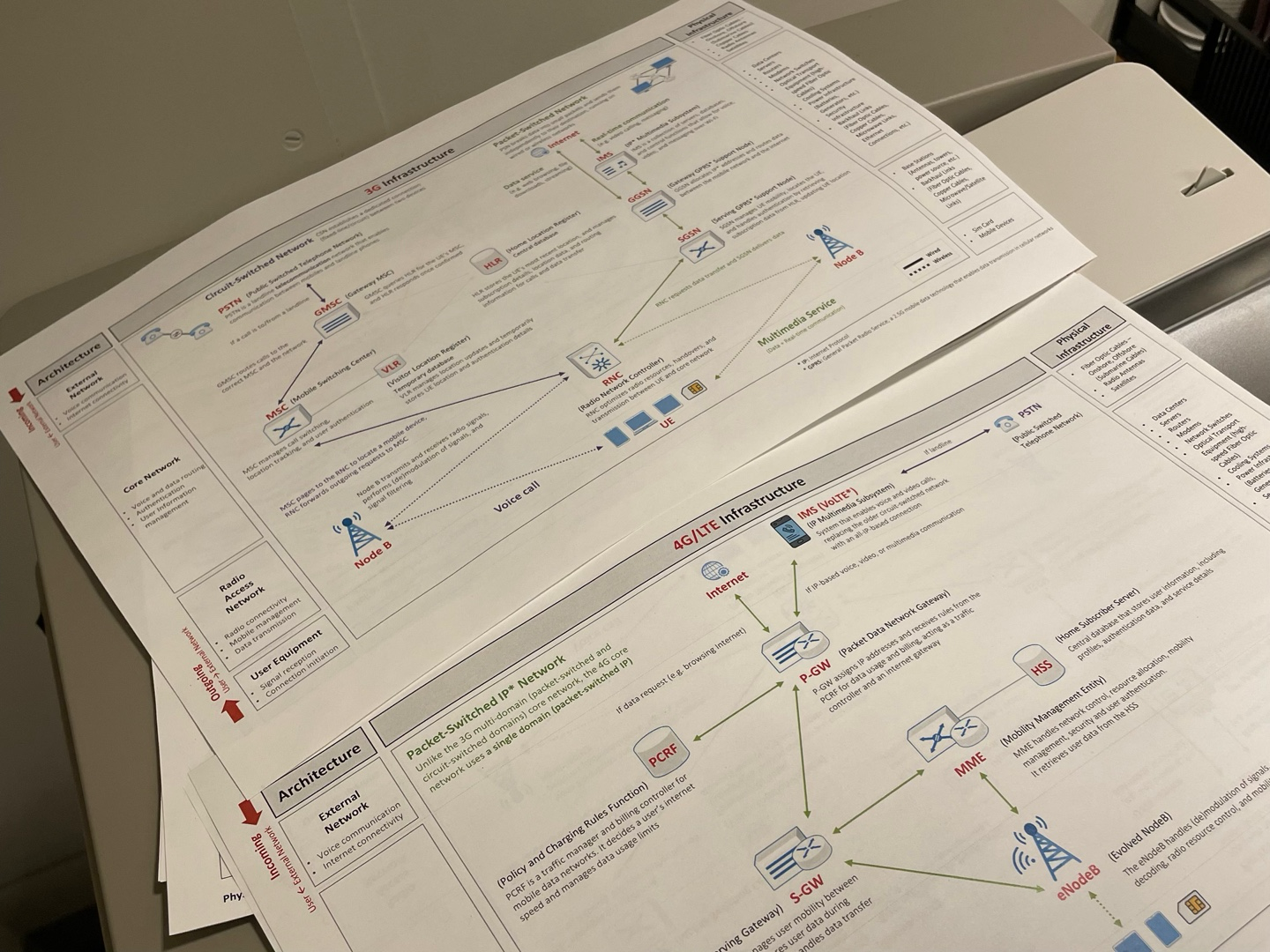

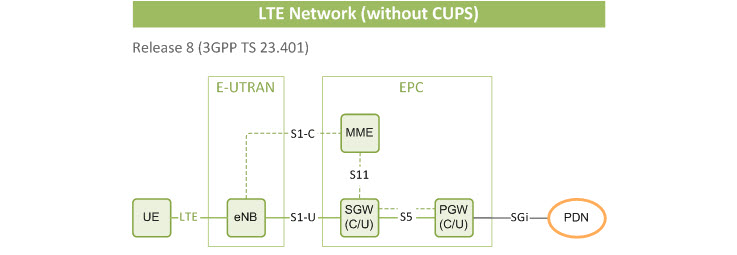

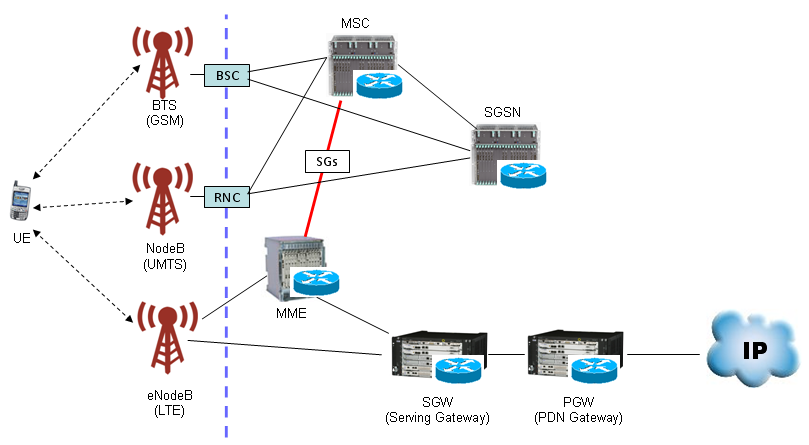

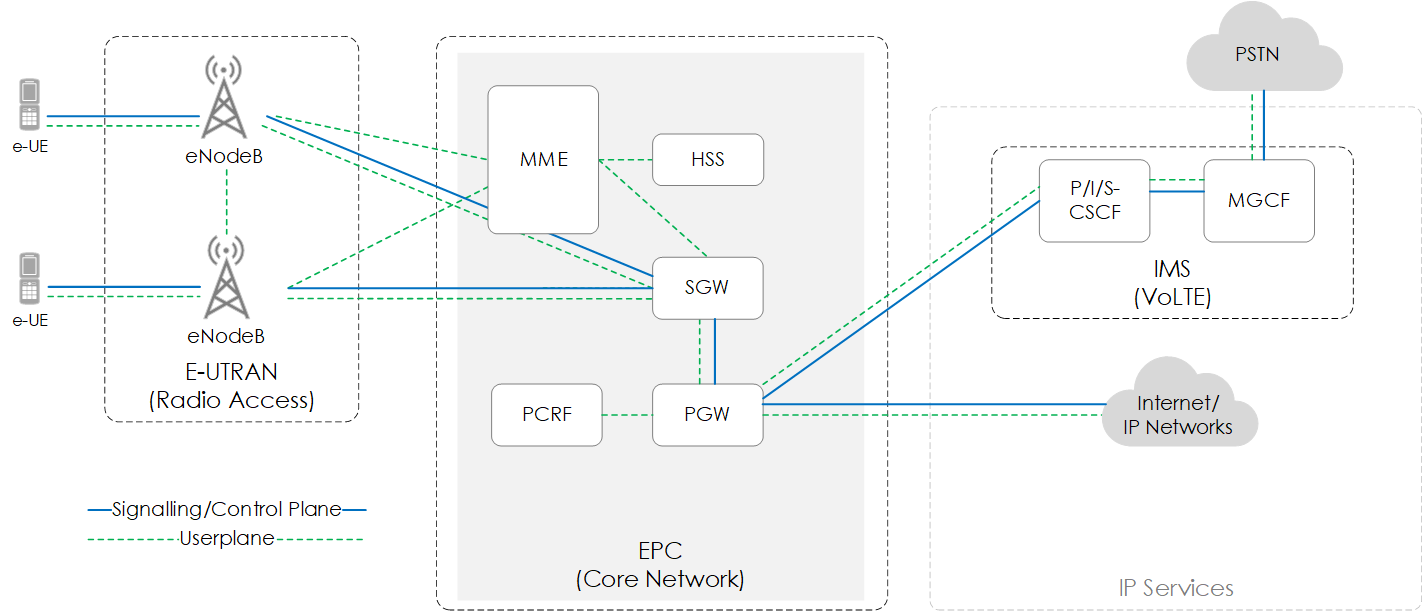

EPC 구조 (without CUPS)

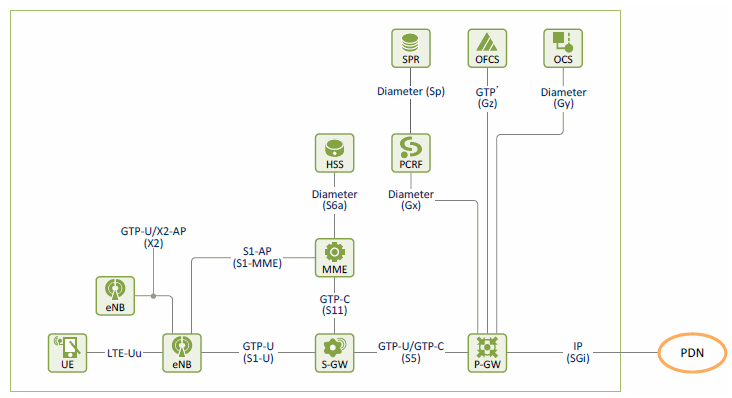

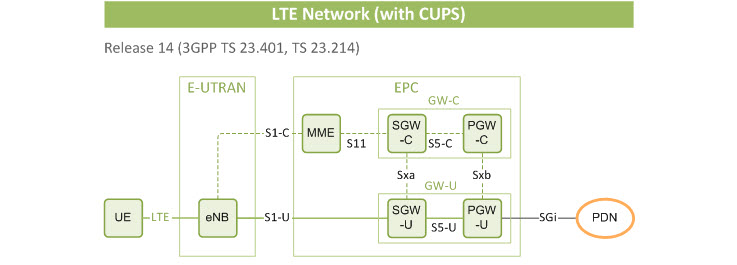

EPC CUPS 구조 (1)

EPC CUPS 구조 (2)







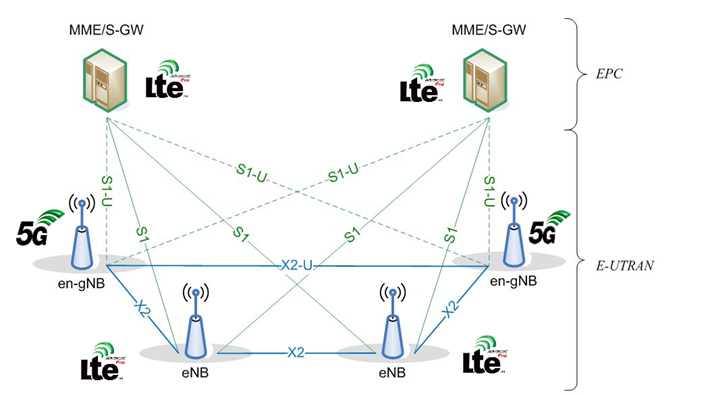

5G Architecture

EPC to 5G CUPS architecture

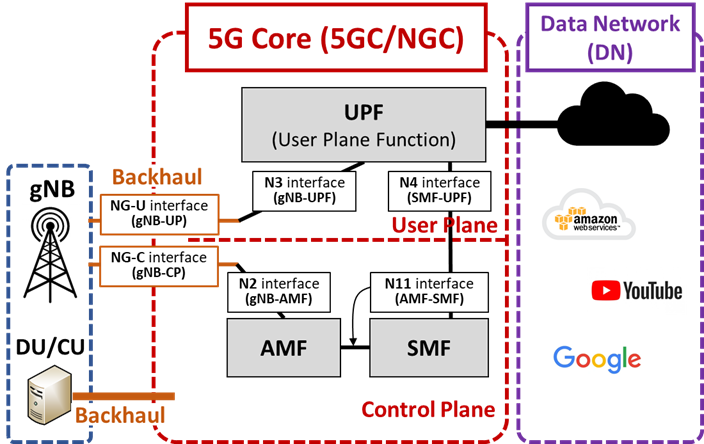

SBA 5G architecture

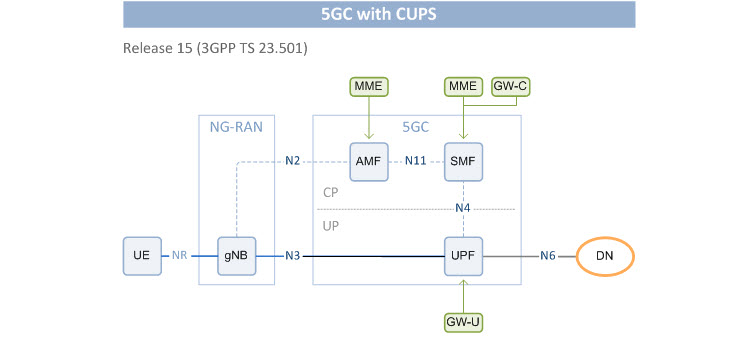

5GC CUPS 구조: CUPS 기반 EPC 기능의 재구성

5G CUPS 구조: RAN으로의 확장

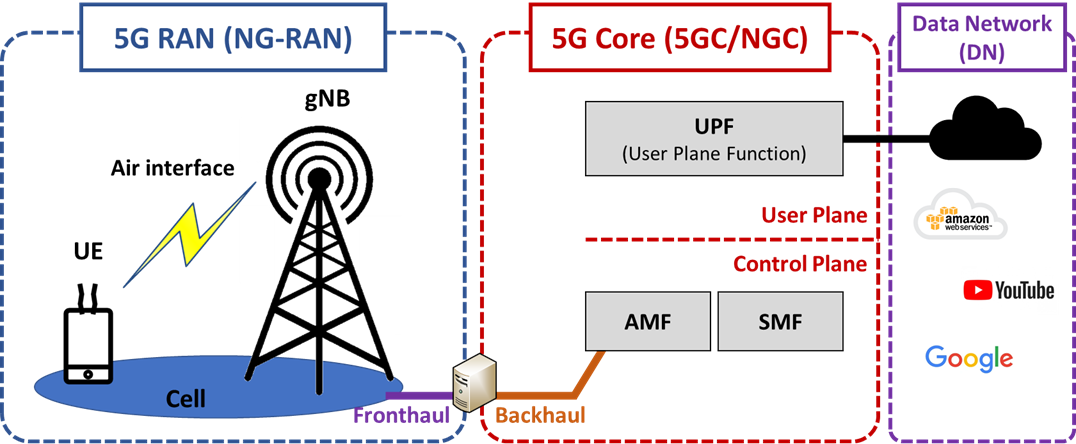

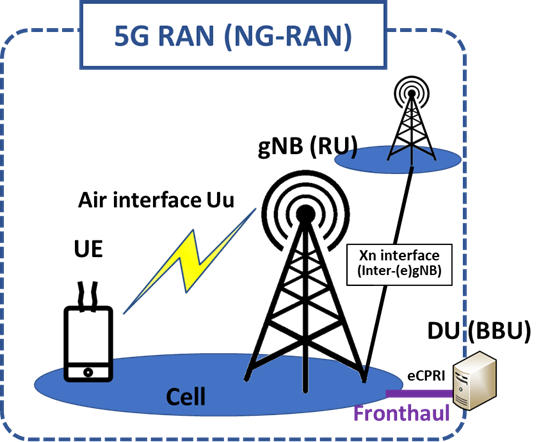

NG-RAN

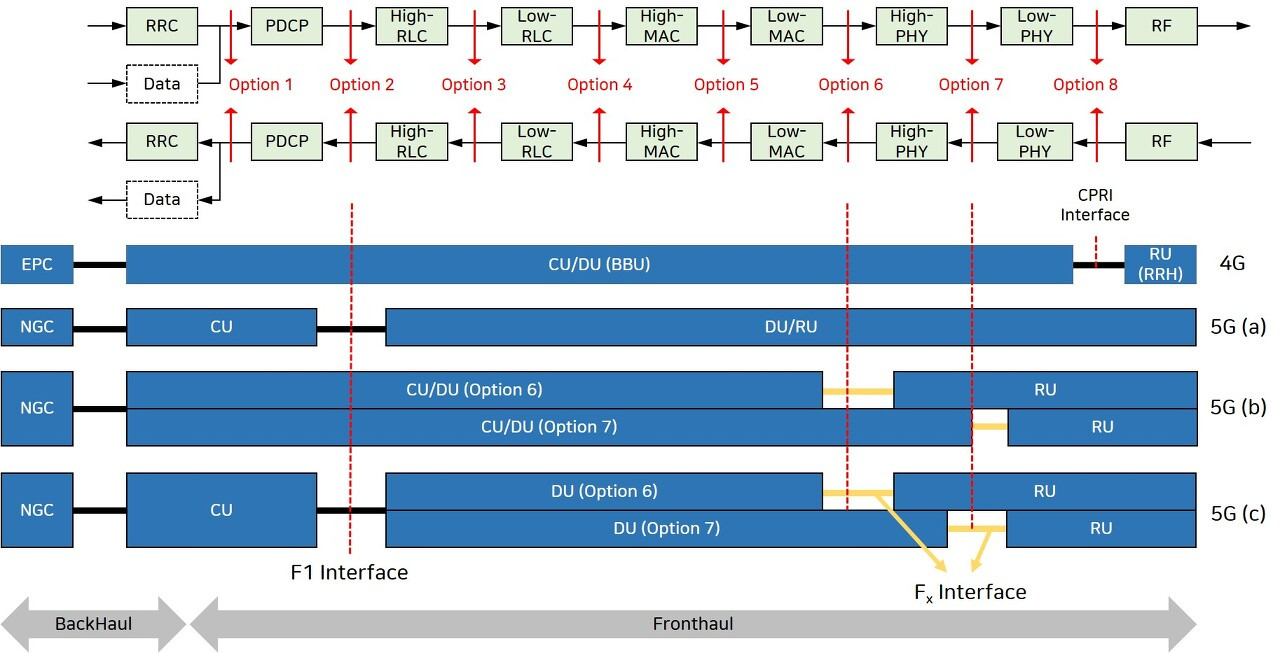

5G 프로토콜과 기능적 분리 (TR 38.801)

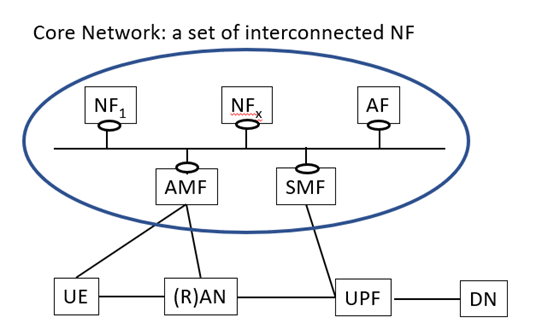

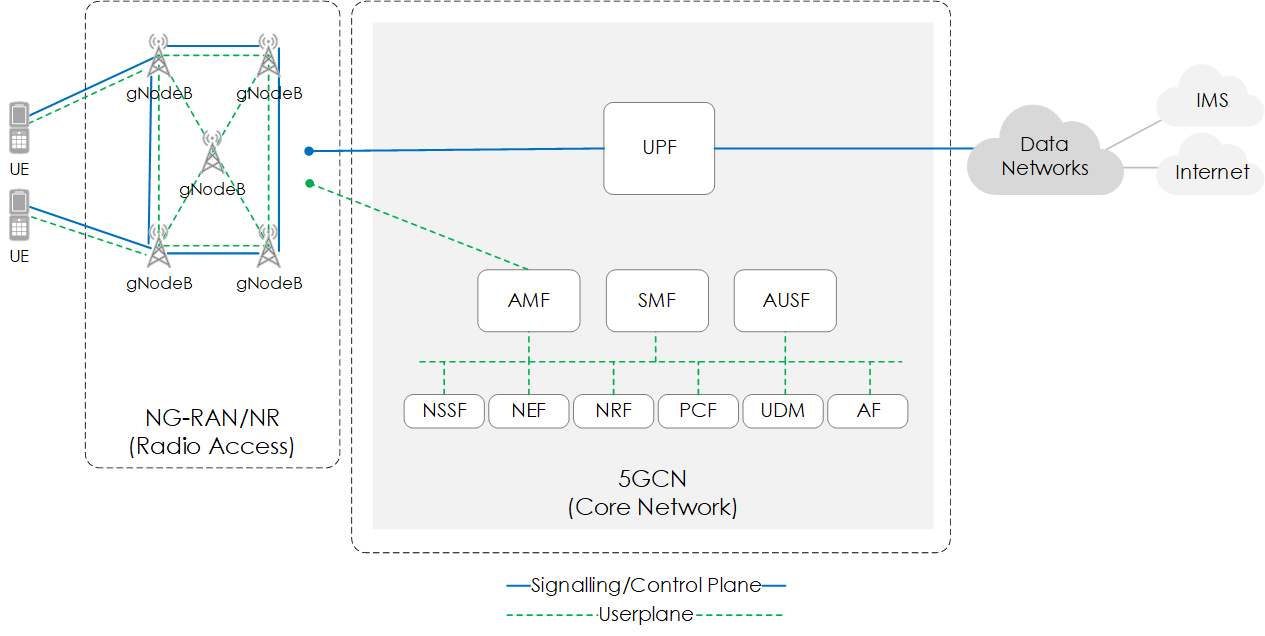

5GC





Overview
